NEW HYBRID - UPDATED TRI-OPTIC DESIGN

TAKE COMMAND OF THE NIGHT WITH WIDER COVERAGE AND FURTHER DISTANCE

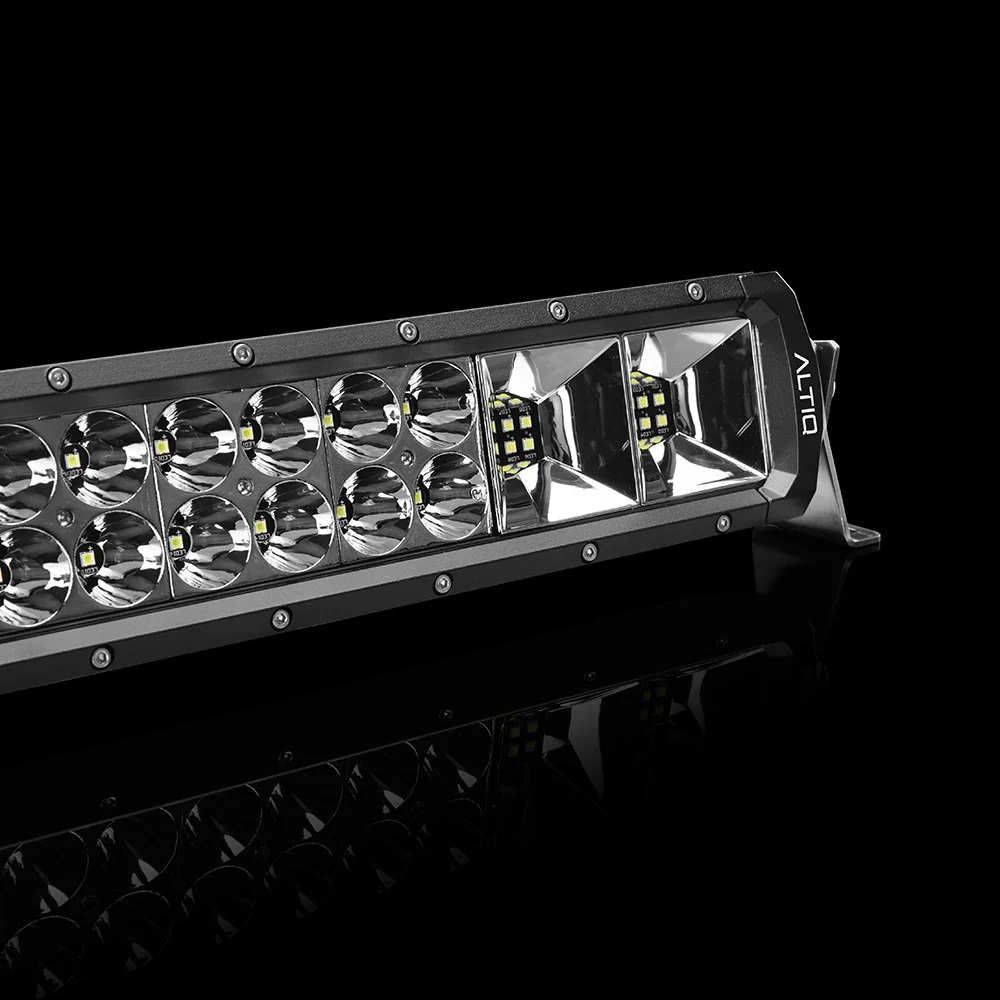

Reaching wider and further, the Hybrid features a new Tri-Optic, multi-pattern reflector design that achieves superior visibility with leading optic efficiency. An evolutionary step in design that boasts a wider flood angle for the widest tracks and further distance on long high ways.

Tri Optical Beam Pattern

5° Hyperspot - Distance
Combo - Centre Spread Flood
Scene - Ultra Wide Flood

Built for tough conditions and made to last, the Hybrid series benefits from a renowned Altiq 10 Year Warranty which is made possible by utilising the highest quality components from world-leading brands such as General Electric, DuPont, Vishay, Osram and more!

HYBRID OUTPUT

120° ULTRA FLOOD + 1 LUX @ 878M

SUPERIOR FORMULA

The Hybrid takes "complete coverage" to the next level! While others compete on just getting high power figures focused on 1 beam pattern, we have found the superior formula for power and efficiency with our multi-output reflector design. Providing a true, seamless, driving light pattern with ultra flood, wide mid-range spread and hyper spot, the Hybrid is unmatched for coverage across all angles!

Hyper Spot Reflector - The essential for lighting up further down the road, providing more reaction time and better braking distances on the highway.
Combo Flood Reflector - Designed to project a wide cast of flood, unlocking further out, off the road, where most animals will lurk before becoming a danger on the road.

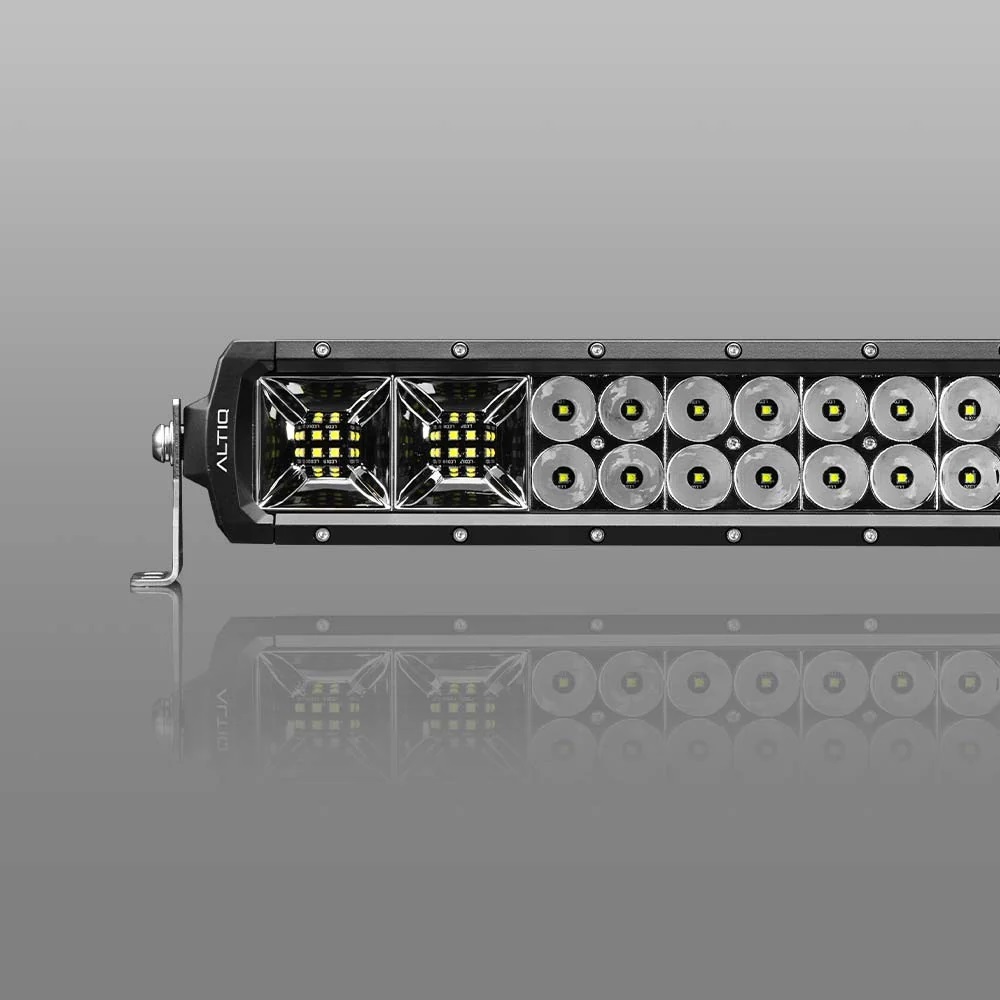

Scene Reflector - Like adding a work light to each end of the light bar, the Scene Reflectors cast an ultra wide, even spread of flood for the immediate range, perfect for off-roading, lighting around corners and technical driving.

MOUNT ANYWHERE

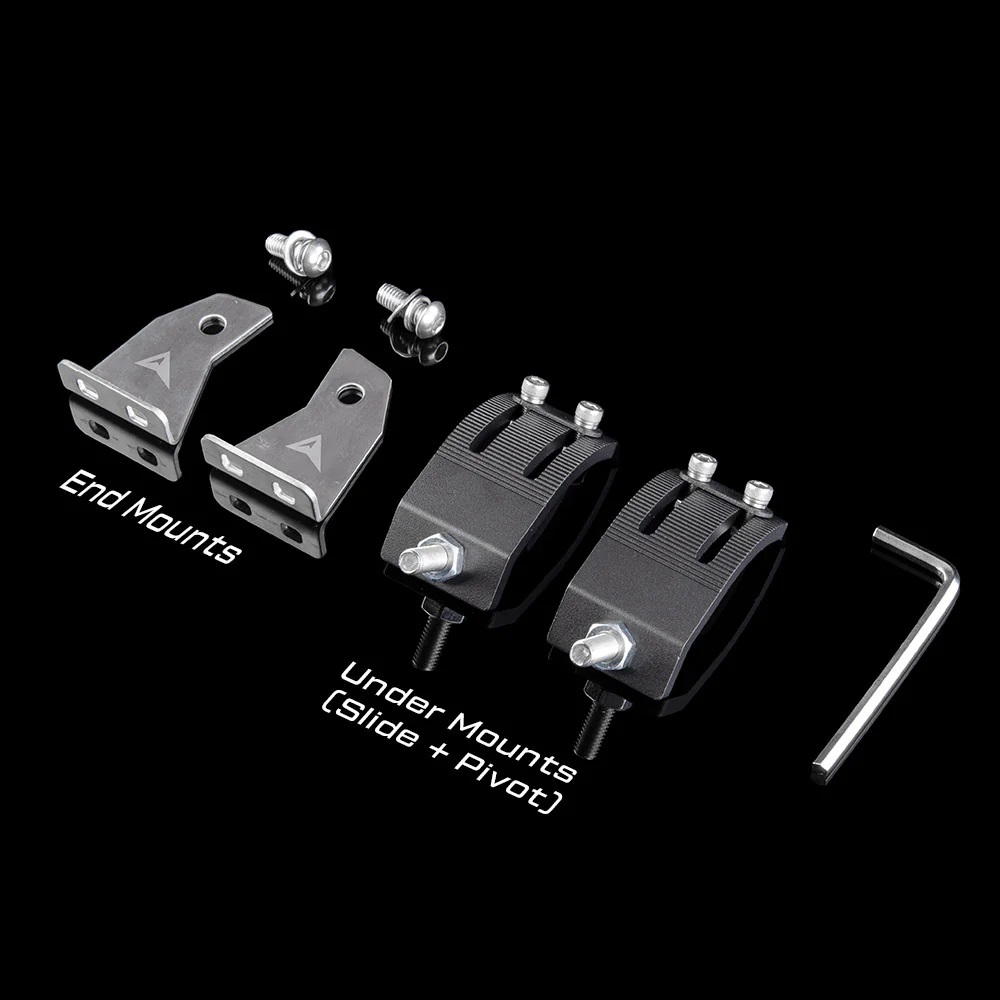

Ready to tackle the harshest roads, the Hybrid comes with 2 mounting options.

316 MARINE GRADE STAINLESS STEEL SIDE BRACKETS

Unbreakable 3mm brushed stainless steel side brackets with full 360° rotation for dialling in the perfect angle + 2 mounting holes per bracket for optimal security.

REAR SLIDING UNDER MOUNT BRACKETS

High-pressure cast alloy brackets that secure to the rear of the Hybrid Housing. The Under mount brackets slide along the Hybrid's rear channel and allow for tilting adjustments to the light bar. Tightening the bolts will lock the teeth of the bracket to the Hybrid's housing, ensuring a secure mounting point that will withstand the harshest corrugations.

SEALED, LOCKED, AND LOADED

With an IP69K rating, the Hybrid has the highest water and dust-proof rating available. Our 3-stage waterproofing will stand up to the toughest conditions, whether that be rain, hail or 3000PSI Water jetting.

It's not only the outside elements that the Hybrid is armed against. Equipped with a Gore-Tex breather valve, internal atmosphere pressure is equalized, preventing seal failure and inhibiting condensation.

WIRING HARNESS INCLUDED

Fully Assembled, our Single Fast Fit Wiring Harness includes:

Battery Terminals, Fuse, Relay, In-Cabin Isolation Switch, and Deutsch Output Terminals
Microprocessor for Negative / Positive Switched Vehicles
H4 + HB3 High Beam Adapters for Halogen High Beam Globes

THE ALTIQ STANDARD

Features

4 x Scene Reflectors - Ultra Wide Flood Output
5º Hyper spot + wide spread flood parabolic reflectors - Seamless Flood to Spot Output
Side and Undermounts Included - Mount anywhere
IP69K Waterproof - Highest dust & waterproof Rating - pressure wash safe.
General Electric Lexan lens - Near indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.
DuPont black paint - Black that stays black - highest chip resistant coating.
Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
Marine Grade 316 Stainless bracket - more rigid and durable
CISPR 25 Class 3 Certified - Zero radio/communication interference.
5700 Kelvin colour temperature - Daylight equivalent for low eye strain.
Fast Fit Wiring Harness - Easy plug and play installation.
10 Year Aussie Backed Warranty - No strings, our Light Bars are made to last!

SPECIFICATIONS:

LUX DISTANCE	1 LUX @ 878M
LUMENS	14850
LENS	GE Lexan Lens 3mm - Indestructible
LEDs	60 X Genuine 5W OSRAM P9 Chips
FINISH	DuPont Midnight Paint
FASTENERS	316L Marine Stainless
WATERPROOF RATING	IP68 - IP69K
WARRANTY	10 Years
INPUT VOLTAGE	10-30V DC
CURRENT DRAW	11.33A @12V
INCLUDED WIRING HARNESS	14 Gauge Dual DT Output, Negative and Positive switched headlight compatible
COLOUR TEMPERATURE	5700K @ 82+ CRI
WEIGHT	2.48KG (including brackets)

WHATS INCLUDED:

1 x Altiq Hybrid - Double Row LED Light Bar
2 x Stainless Steel Side Mounting Brackets

3 x Sliding Rear Undermount Brackets

1 x Stainless Steel Mounting Fastener Kit
1 x Fast Fit Single Wiring Harness - Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In-Cabin Isolation Switch, and H4 + HB3 high beam connections.
Free Delivery

For newer vehicles with LED, HID or Xenon headlights, vehicle-specific adapters will be required.
