Brand: Redarc
MONITOR

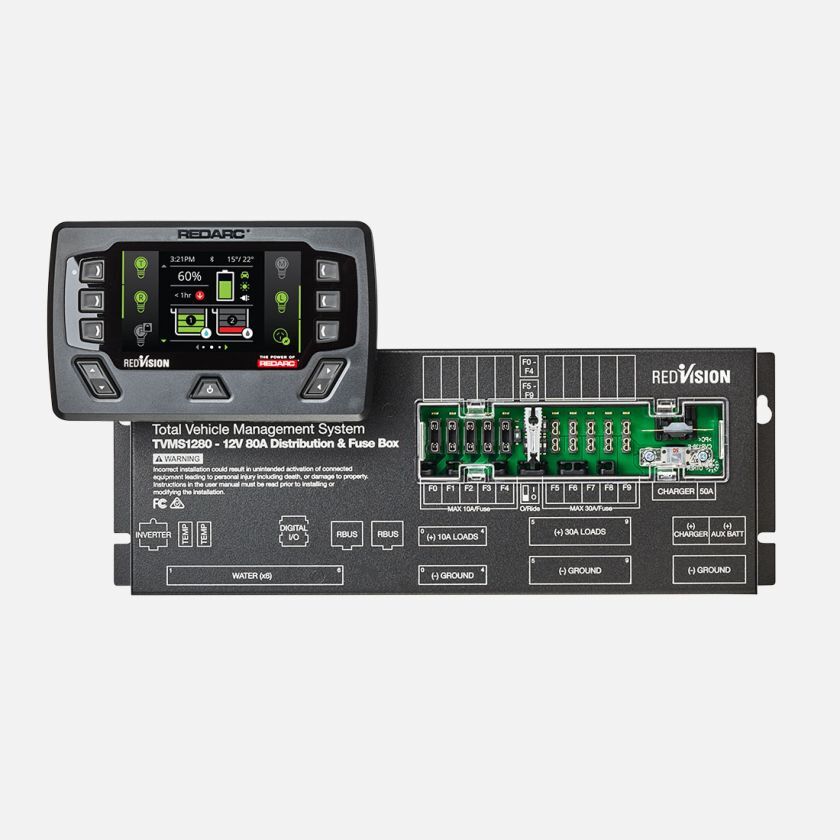

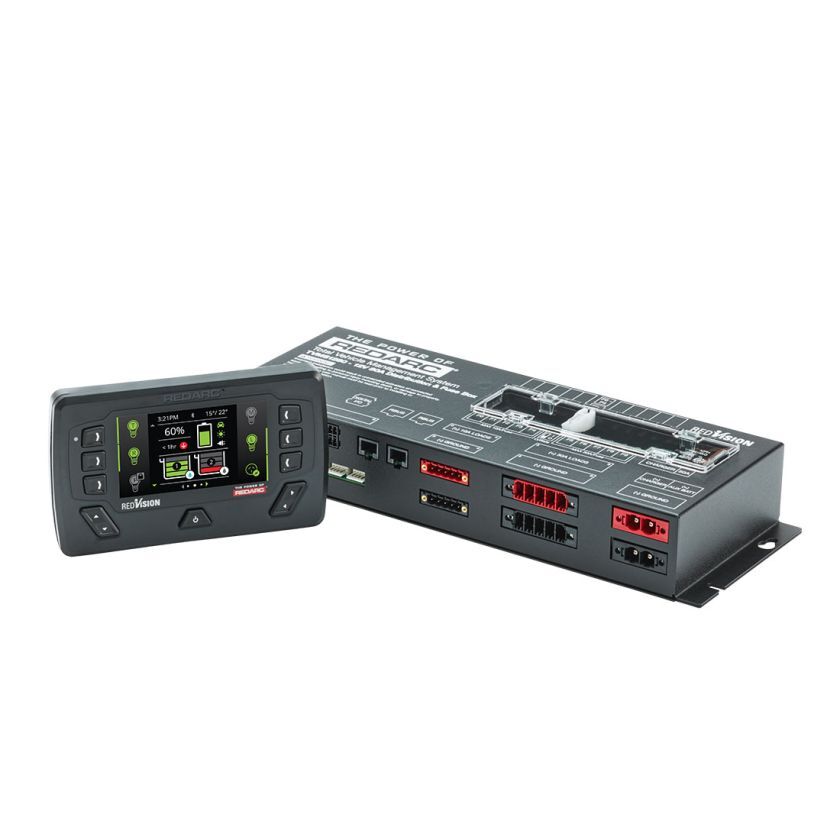

When combined with the RedVision screen and Manager30 battery management system (sold separately), the TVMS Prime provides real time and accurate state of charge, power input/output and ambient temperature information.
Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up.
CONTROL
The Prime RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.
Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you'll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11.

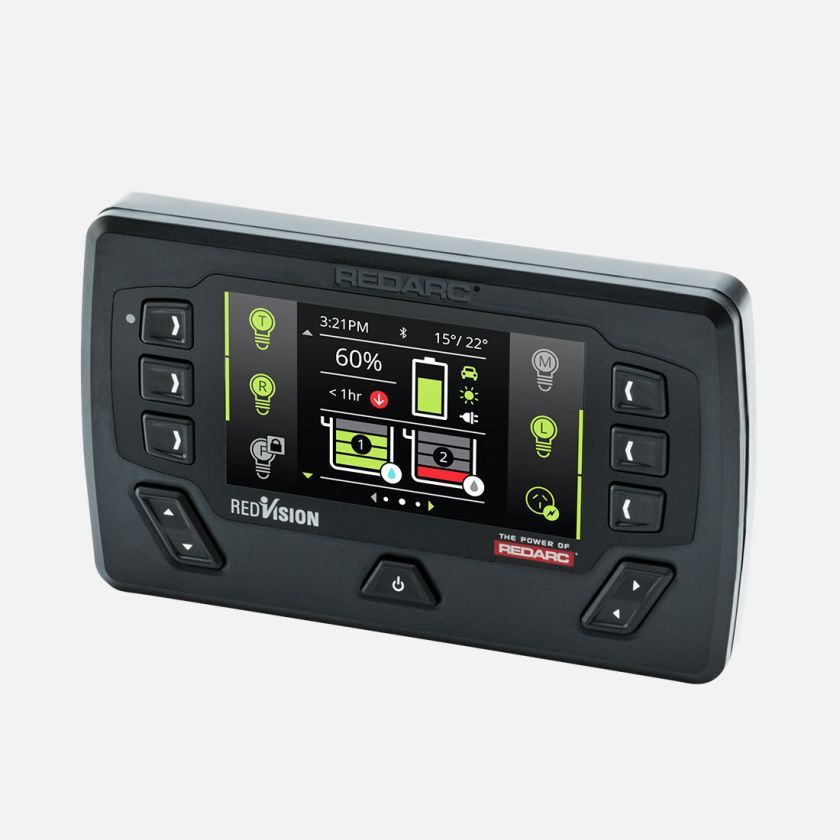

Take control outside with the connected Bluetooth app or use the included RedVision display.
AUTOMATION
Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system. Find out more here.
As featured in Camper Trailer of the Year. |
A proud winner of a
|
Announced as the |
Download the RedVision product flyer here.
*The RedVision system (TVMS1280) and RedVision/Manager30 Kits (TVMSKIT05) are compliant to Australian and New Zealand regulations only. As a result, availability of the RedVision mobile applications outside of these regions are restricted accordingly.
(TVMS1280)
Attribute name | Attribute value |
---|---|
Compliance | AU, NZ & USA |
Operating Temperature (Distribution box) | -20°C to + 60° |
Operating Temperature (Display) | -20°C to + 70°C |
Storage Temperature (Display) | -20°C to + 85°C |
Maximum Charger Current | 40A |
Maximum Battery Current | 80A |
Temperature Sensors | 2 |
Output Circuits (Max) | 5 x 10A, 5 x 30A |
Main Unit Dimensions | 385 x 138 x 58mm |
Display Dimensions | 178 x 108 x 26mm |
Warranty | 2 Years |
SKU | TVMS1280 |
Brand | Redarc |
