Brand: Smittybilt

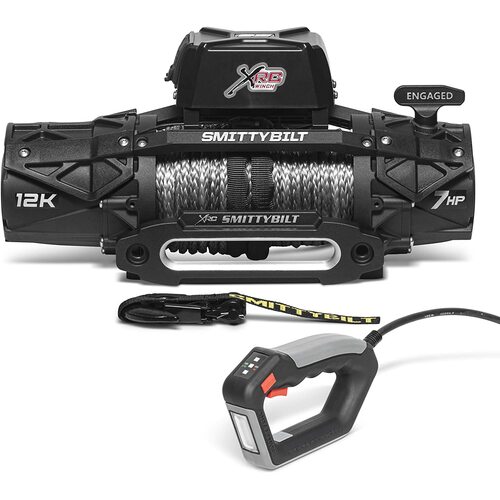

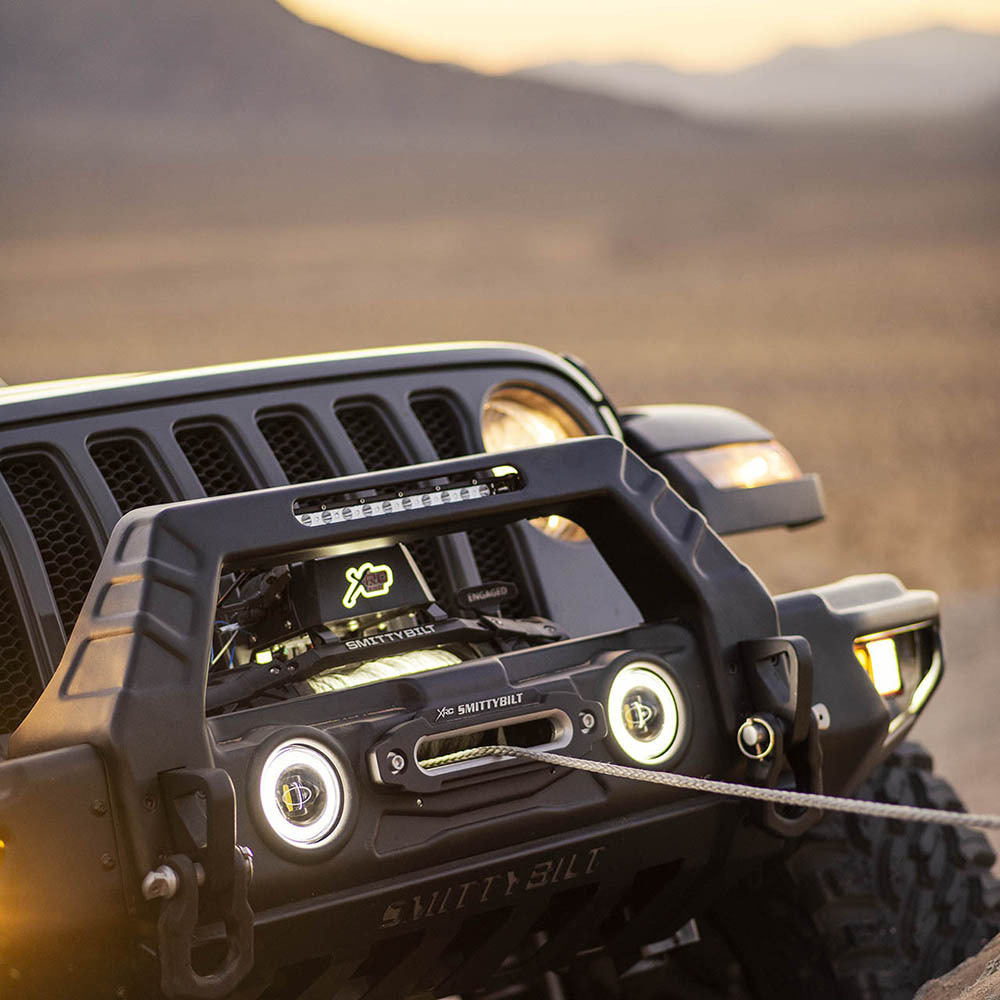

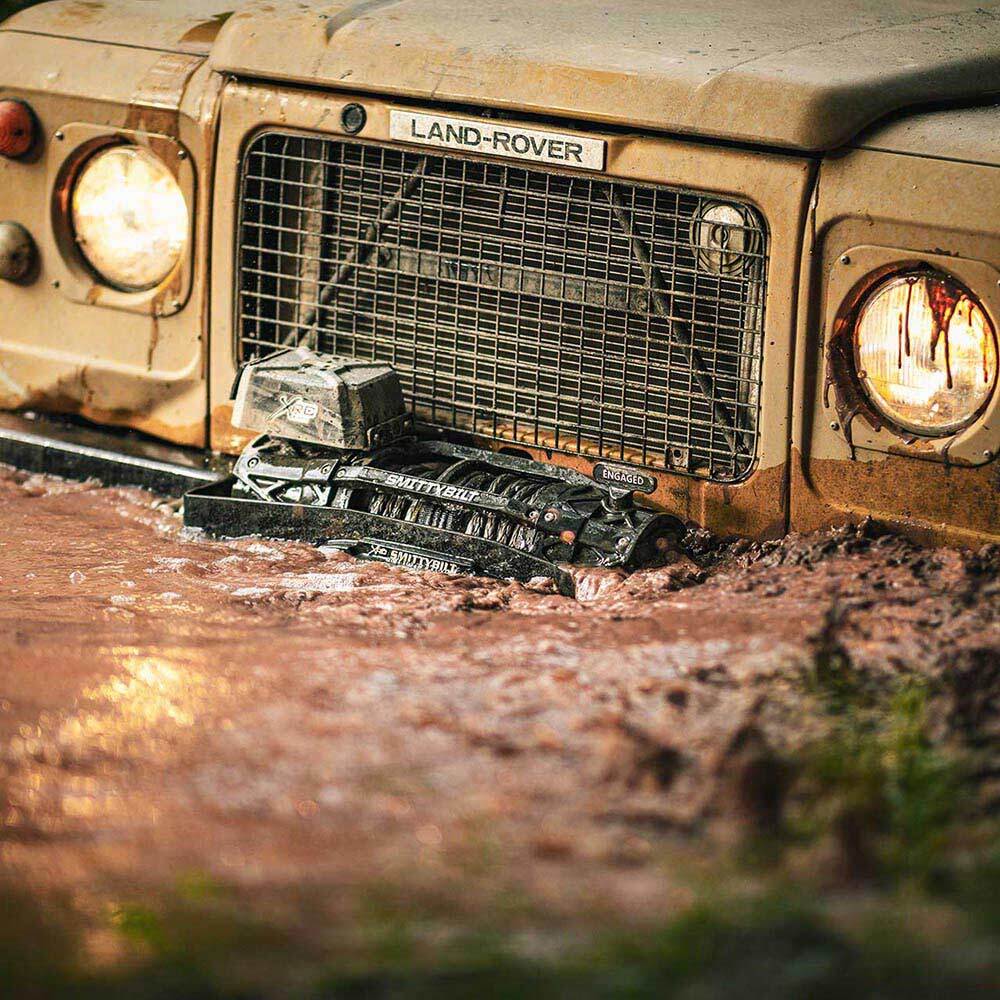

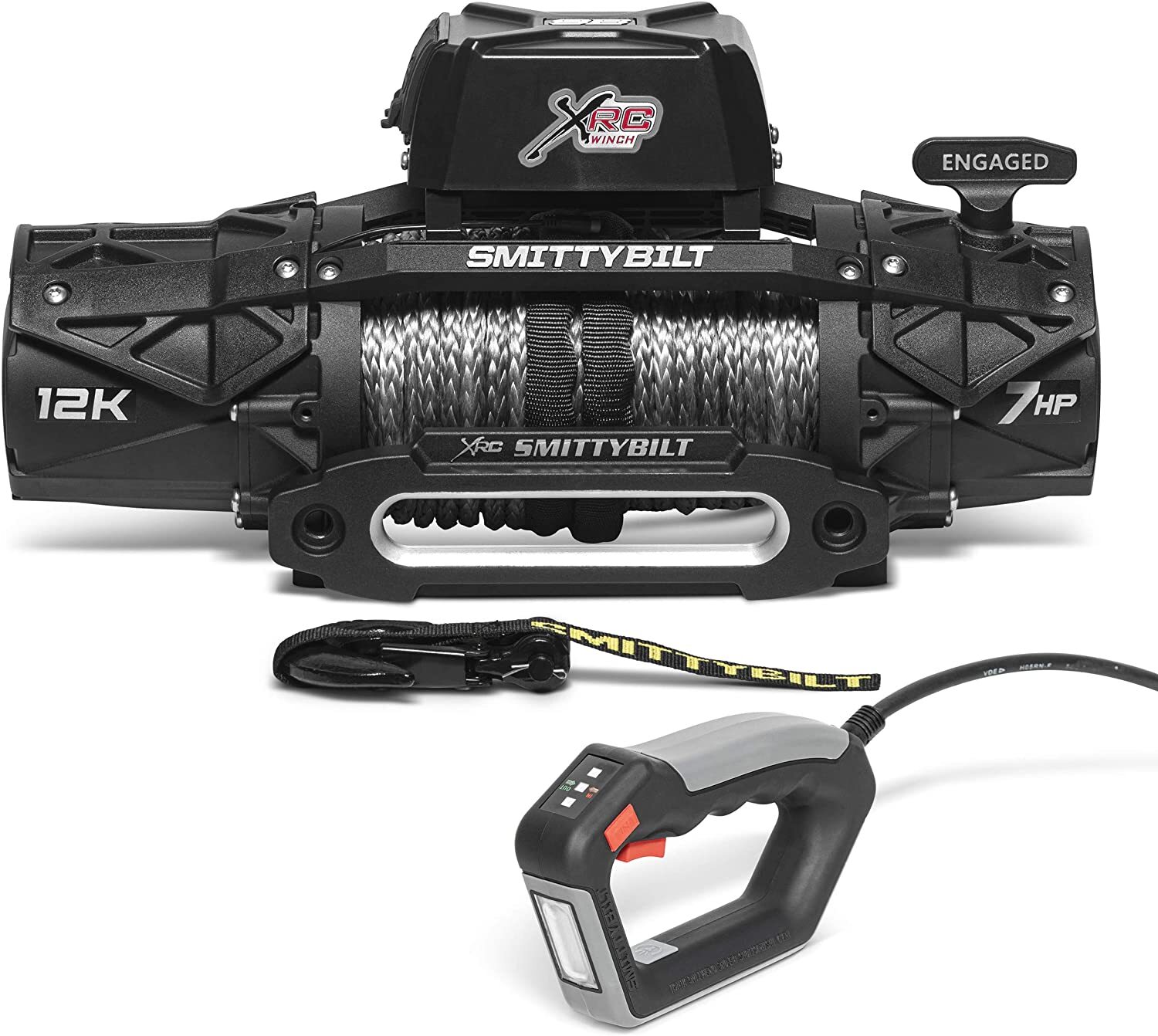

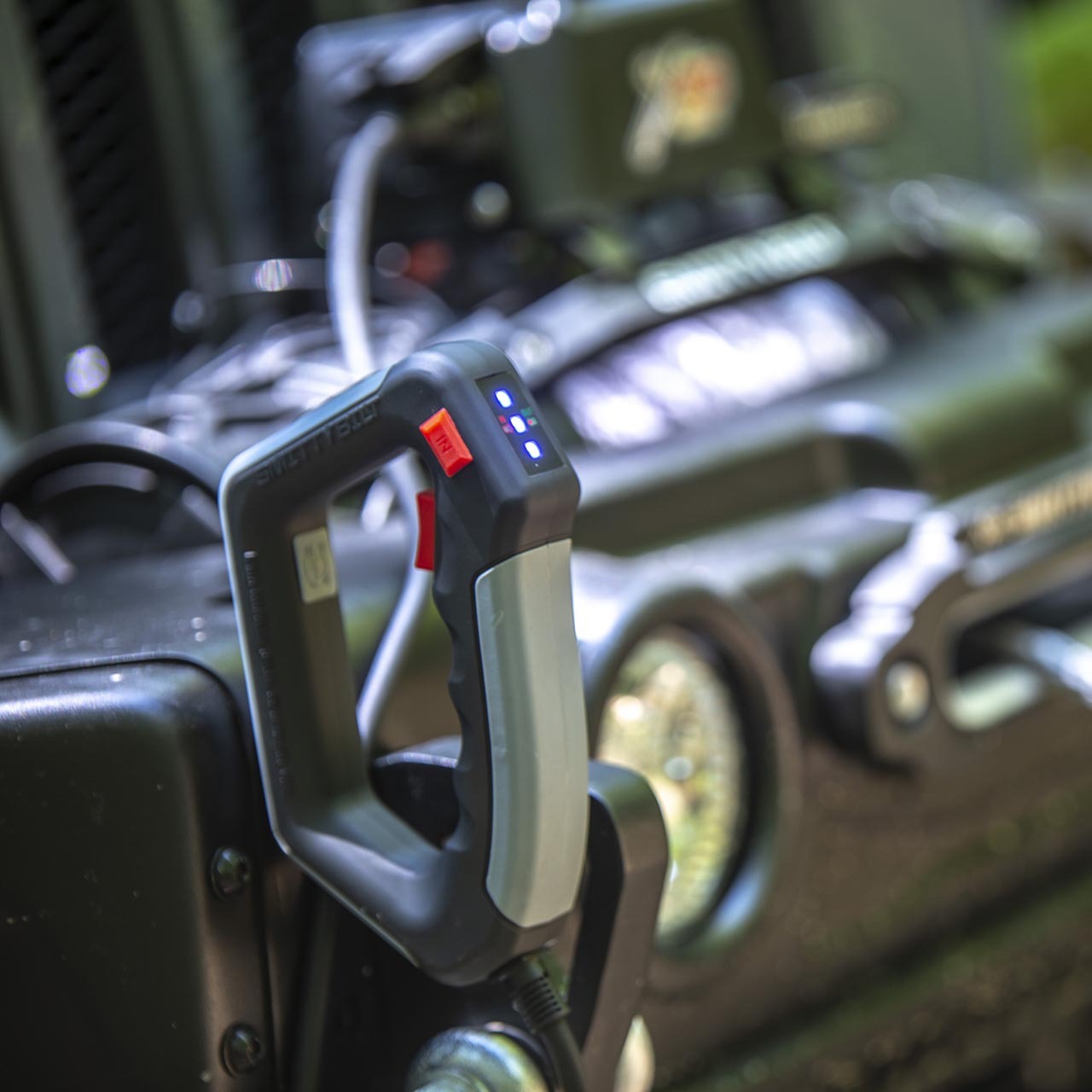

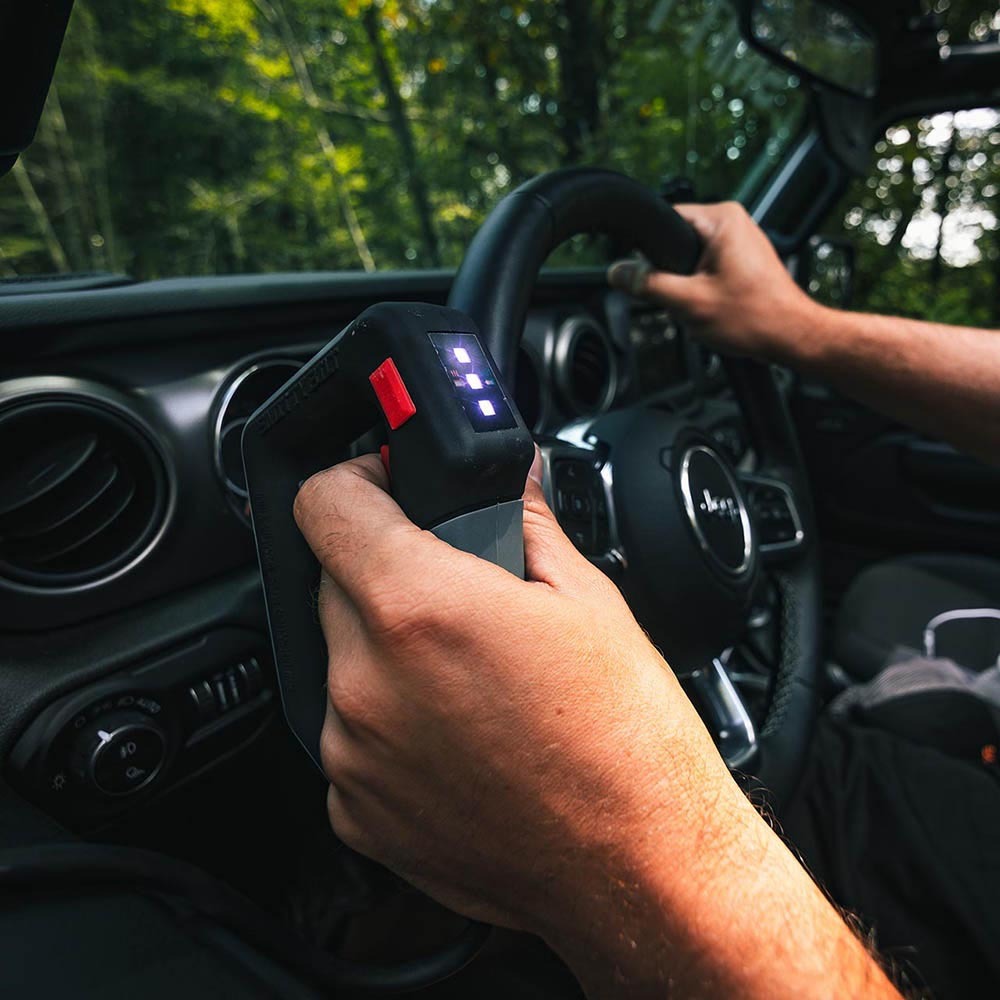

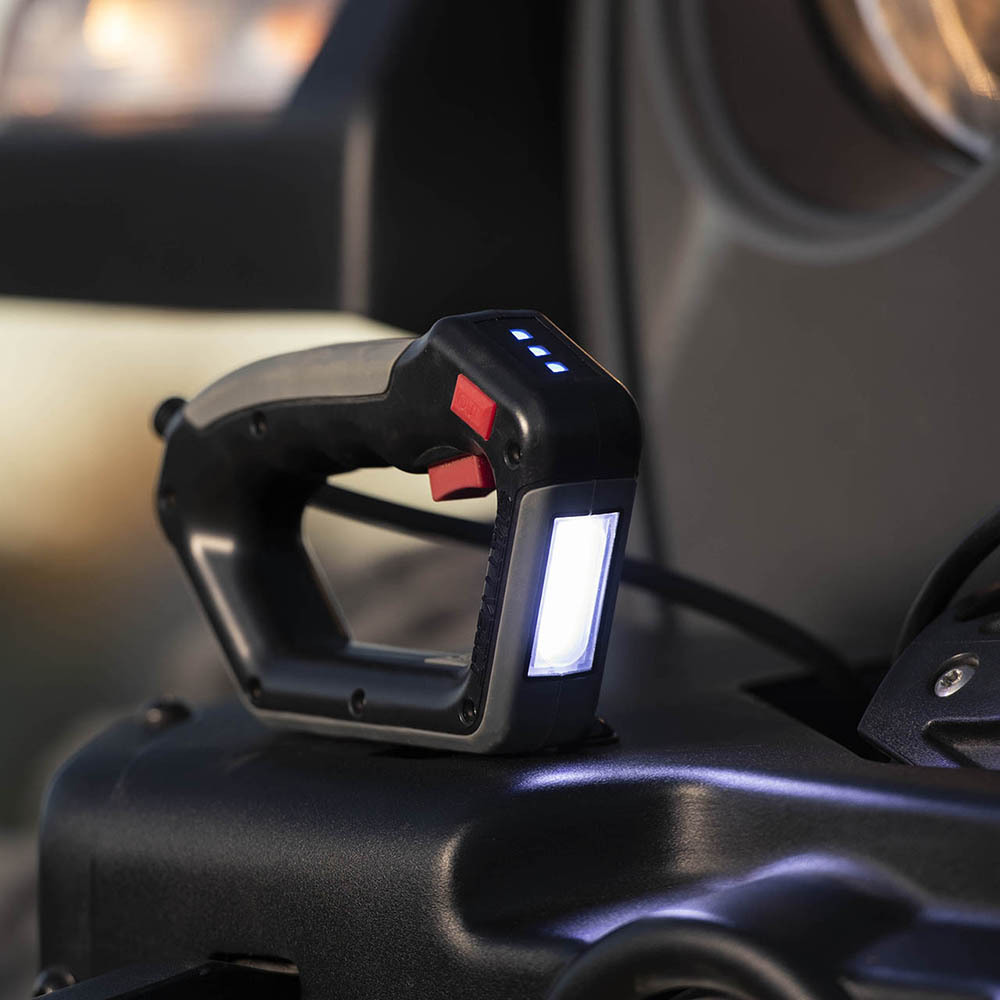

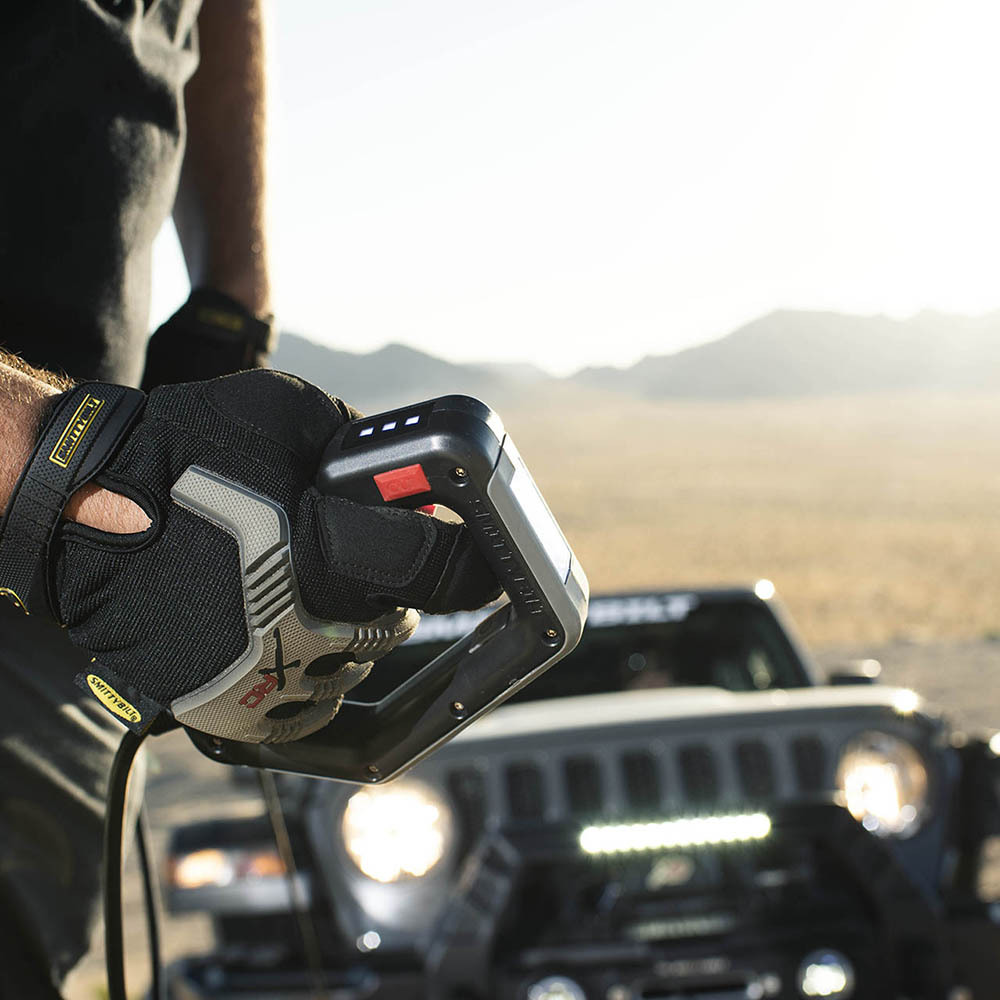

Faster. Stronger. Easiest to Use. The all-new XRC Gen3 Winch by Smittybilt has been designed from the ground up with innovative, user-friendly features and improved power efficiency. The 7.0 horsepower motor boasts an average line speed increase of 12% over its Gen2 predecessor, adding more speed and power with less AMP draw at load. The ergonomic remote controller has a Load Indicator Warning System, so you will always know how much your equipment can handle. Winching in dark conditions is also a breeze with the remote’s built-in flashlight and the new tie bar light. If additional light is needed, a 12-volt power post is located on the control box. Two magnets are built into the controller for easy placement on any metal surface, leaving it out of the way when not needed. A high-viz clutch lever features large lettering, allowing you to see whether your winch is engaged/free spooled at a glance. Stylish body armor can be detached or used to customize your winch to your vehicle. The XRC Gen3 winch is available with 9.5k and 12k load-capacity options, and the COMP Series upgrade includes a synthetic rope and aluminum hawse fairlead. Buy with confidence – these winches are backed by a lifetime mechanical warranty, a 5-year electrical warranty, and Smittybilt’s legendary customer service.
INCLUDED WITH THE XRC GEN3 WINCH:
• FORGED WINCH HOOK

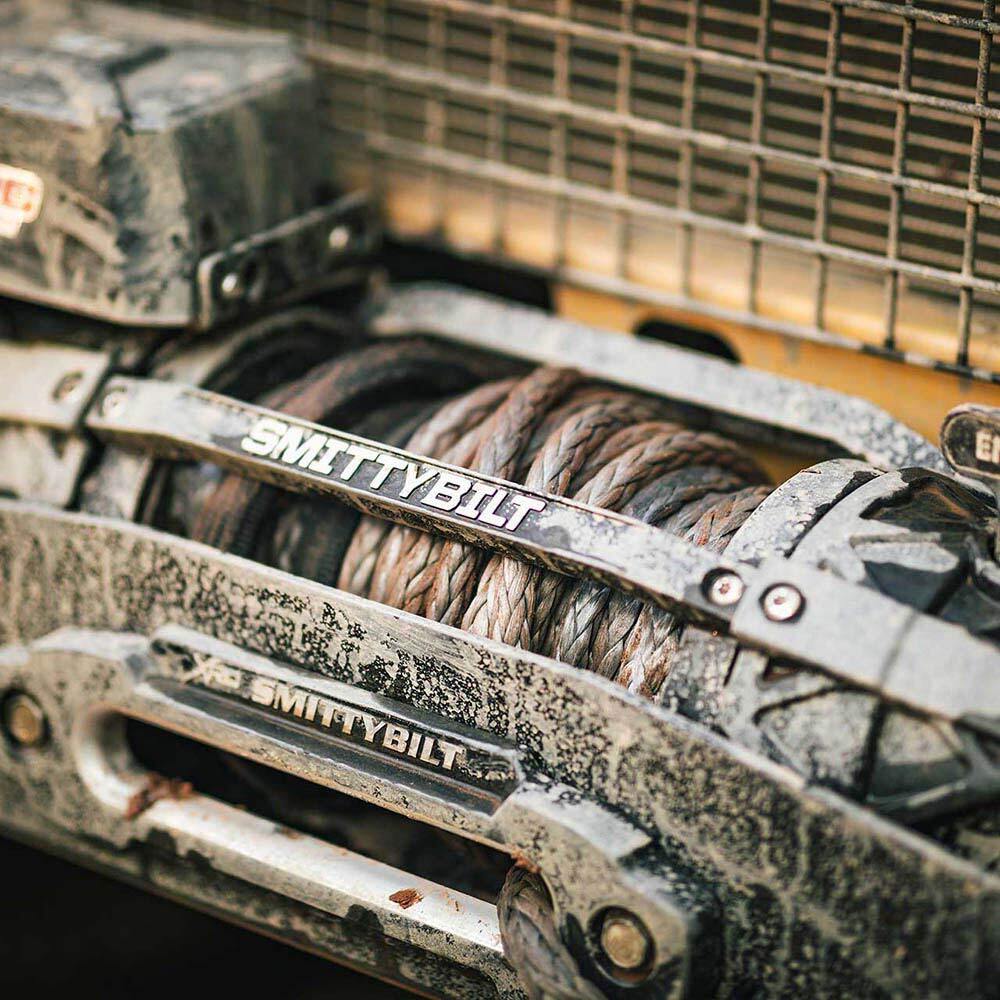

• SYNTHETIC CABLE W/ HAWSE FAIRLEAD
• MOVEABLE CONTROL BOX BRACKET
(SB98612)
INCLUDED WITH THE XRC GEN3 WINCH:
• FORGED WINCH HOOK
• SYNTHETIC CABLE W/ HAWSE FAIRLEAD
• MOVEABLE CONTROL BOX BRACKET
GENERAL SPECIFICATIONS | XRC GEN3 12K COMP SERIES |
---|---|
Cable/Rope Type | Synthetic |
Part Number | 98612 |
Regular List Price |
|
Fairlead Type | Hawse |
Rated Line Pull | 12000lb
|
Motor | 7.0 HP
|
NEW! Load Indicator System | YES |
NEW! Controller Flashlight |
|
NEW! Detachable Body Armor |
|
NEW! 12 Volt Power Outlet |
|
NEW! Control Box DRL |
|
NEW! High-Visibility Clutch Lever |
|
NEW! Dual-Magnet Controller Mount |
|
Moveable Control Box |
|
Int’l Waterproof Rating | IP67 |
Electrical Warranty | 5 years |
Mechanical Warranty | LIFETIME |
LINE SPEED/AMP DRAW | |||||
---|---|---|---|---|---|
Line Pull – lb | 0 | 3000 | 6000 | 9000 | 12000 |
Line Pull – Kg | 0 | 1364 | 2727 | 4082 | 5433 |
Line Speed – Ft/min | 25 | 14.7 | 12.8 | 8 | 5.2 |
Line Speed – M/min | 7.6 | 4.5 | 3.9 | 2.4 | 1.6 |
Motor – AMPS | 90 | 160 | 230 | 300 | 375 |
LINE PULL/CABLE CAPACITY | ||||
---|---|---|---|---|
Layers of Cable | 1 | 2 | 3 | 4 |
Rated Line Pull, per Layer – lb | 12000 | 10270 | 9200 | 8800 |
Rated Line Pull, per Layer – kg | 5440 | 4654 | 4169 | 3790 |
Cumulative Cable – ft | 16 | 42 | 72 | 80 |
Capacity – m | 5 | 12 | 21 | 24 |
SKU | SB98612 |
Brand | Smittybilt |
