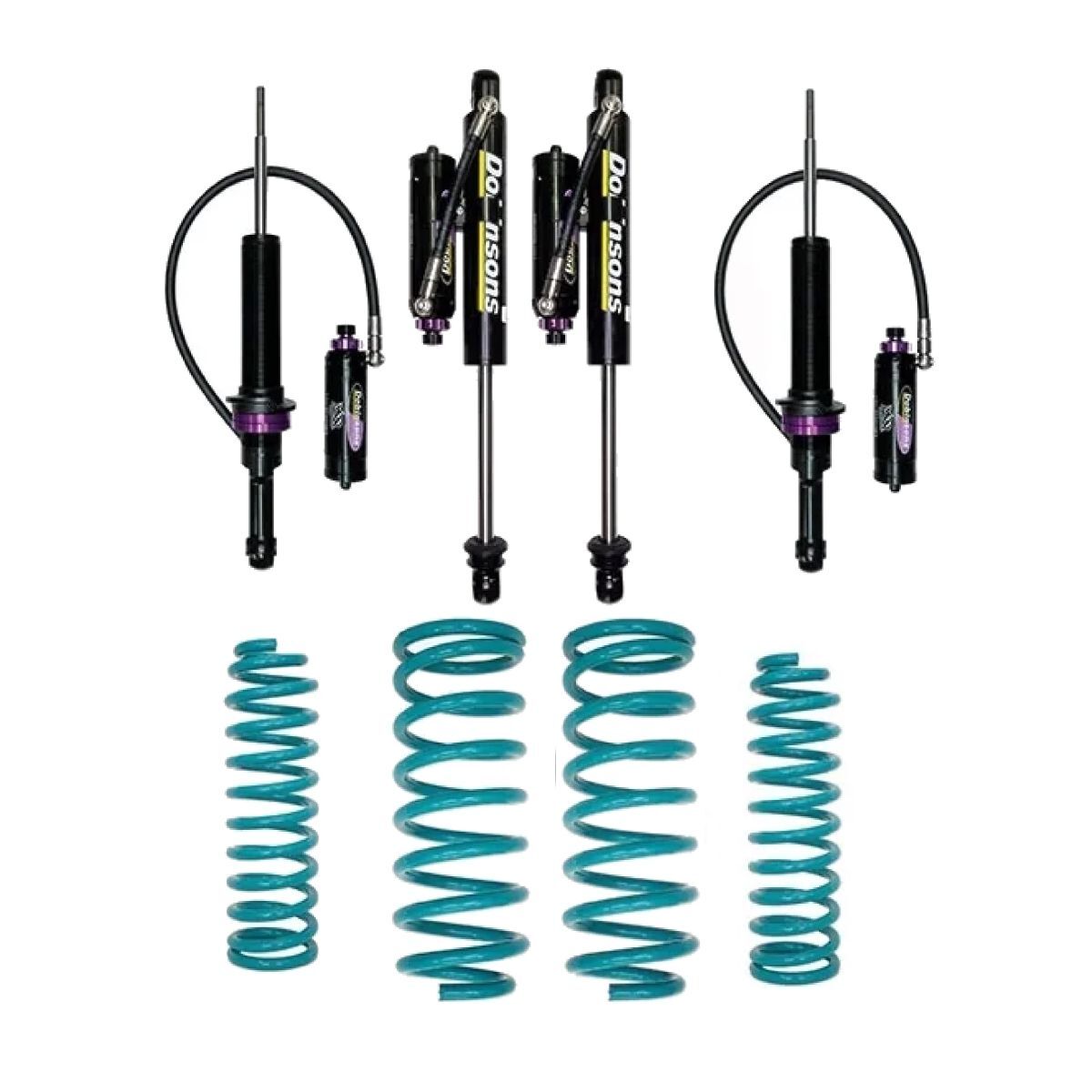

This is a complete Dobinsons 50mm 2 inch MRA Monotube Remote Reservoir Adjustable suspension lift kit for your Toyota Landcruiser 200 Series GX, GXL, VX 2007-on Twin Turbo & Diesel.
Kit Contains:
- Front Coil Springs
- Rear Coil Springs
- Front Shock Absorbers
- Rear Shock Absorbers
Enhance your off-road experience with Dobinsons MRA Monotube Remote Reservoir Adjustable Shock Absorbers, meticulously designed for superior performance in CHAlenging conditions. These shocks outperform traditional twin tube shocks, providing exceptional resilience on rough terrains, corrugated roaDT, and demanding situations like towing or racing.
The monotube design of Dobinsons MRA Monotube Remote Reservoir Adjustable shock absorbers ensures extended resistance to fade, making them ideal for prolonged 4WD journeys and harsh conditions. The 50 and 60mm high flow pistons, coupled with threaded bodies on struts, enable precise height adjustments for optimized cooling and enhanced damping performance during intense off-road adventures.
Crafted with precision, the micro-polished, hard-chromed, and heat-treated shock shaft, along with a CNC aluminum high-flow piston and DOM seamless tubing body, guarantees peak performance and durability. The use of composite piston wear banDT, high-quality Fuchs oil, and a race-style 3-stage sealing system minimizes friction, ensuring longevity without the need for frequent rebuilding.
Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine. Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.
The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.
The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...
Tailor your off-road experience further by selecting from a range of load-rated springs to match your vehicle's accessories.
Options include:
- 50mm Light Load (Up to 100Kg Constant)
- 50mm Medium Load (250-300kg Constant)
- 50mm Heavy Load (500kg Constant)
Features and Specifications:
- 10 Stage High Speed Compression Adjustment
- 20 Stage Low Speed Compression Adjustment
- 15 Stage Rebound Adjustment
- 50 / 60mm CNC Machined High Flow Billet Aluminium Race Piston
- Lightweight CNC Machined Low Friction floating piston
- TSUGAMI™ CNC machined components for precise tolerances
- CNC TIG Precision Welded Body End Mounts
- 60mm 6063 Aluminium Remote Reservoir
- Upgraded 3 Stage FKM-HNBR Sealing System
- Fully Rebuild-able Design
- 5140 HV900 Hard Chrome Plated, Heat treated 18 / 22mm Micro- Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- Direct Bolt-On Design
- 3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- High Quality O.E.M. Grade Natural Rubber Bushings
- Parker™ Braided High Pressure Hoses
- EDP Surface Protection
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
Upgrade your off-road adventure with Dobinsons MRA Monotube Remote Reservoir Adjustable Shock Absorbers – the epitome of performance and durability.
*Average handling time is 3-10 business days. Free shipping to local depot or metro business address only, as per shipping policy.
*Picture is for illustrative purposes only
*All measurements are approximate and each vehicle can vary. All photos are for illustrative purposes only.
(KDMA-LC2D2)
