Brand: Renogy
Introducing Renogy 12V 40A DC to DC Battery Charger, the second generation of the DCC series. This innovation offers the ultimate driving charging experience with smart control. Compatible with smart and traditional generators, this 12V onboard battery charger ensures efficient energy utilization while safeguarding vehicle batteries. With multiple electronic protections, the product offers a reliable driving charging experience, achieving up to 94% charging efficiency. Integrated with intelligent charging logic, it seamlessly optimizes charging processes. Furthermore, with the remote monitoring feature via the app, you can easily keep track of the generator system's status. Elevate your driving charging experience with Renogy, whether you're exploring the great outdoors or living the van life, it is your dependable companion.
Elevate your driving charging experience with smart control.

The second-gen DCC charger intelligently adjusts output power In high-temp environments to ensure efficient and safe charging.

Enable or disable lithium battery activation based on battery status via the DC Home app, extending battery lifespan.

Effortless remote monitoring and control of charging parameters.

The included battery temperature sensor provides real-time data to the charger, allowing them to adjust charging parameters accordingly for optimal performance.

(RBC40D1U-AU)
RENOGY 40A DC TO DC BATTERY CHARGER
GENERAL DATA
Terminal Range: 8AWG - 6AWG
Grounding: Common Negative
Communication Protocol: RS485 Communication
Operating Temperature Range: -4℉ -122℉ /-25 ℃ - 60℃
Storage Temperature Range: -4℉ -122℉ /-40 ℃ - 85℃
Humidity: 0%-95%, No Condensation
Maximum Operating Altitude: 3000m
Enclosure Rating: 0%- 95% ,no condensation
Dimensions: 9.31 in (236.5 mm)x6.00 in (152.5 mm)x2.36 in(60.5 mm)
Weight: 4.41 lb / 1.88 kg
Certification: CE/RoHS/FCC
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection
ELECTRICAL DATA
System Voltage: 12V-12V

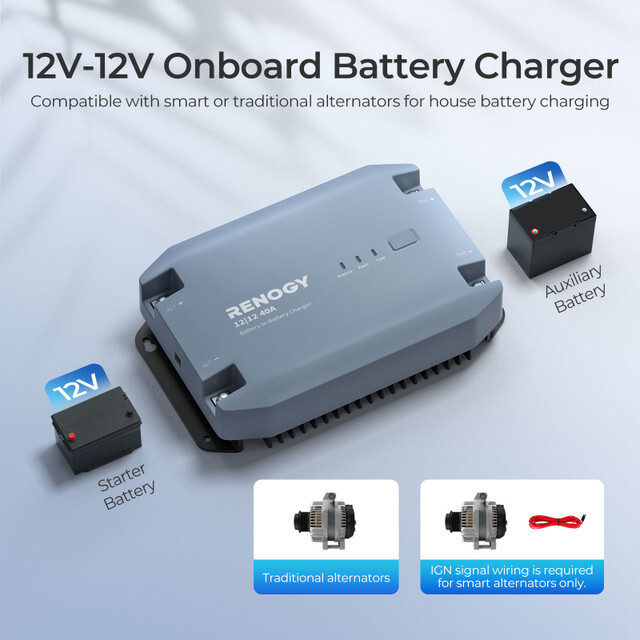

Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC"
Maximum Output Current Rating: 40A
Output Power: 584W

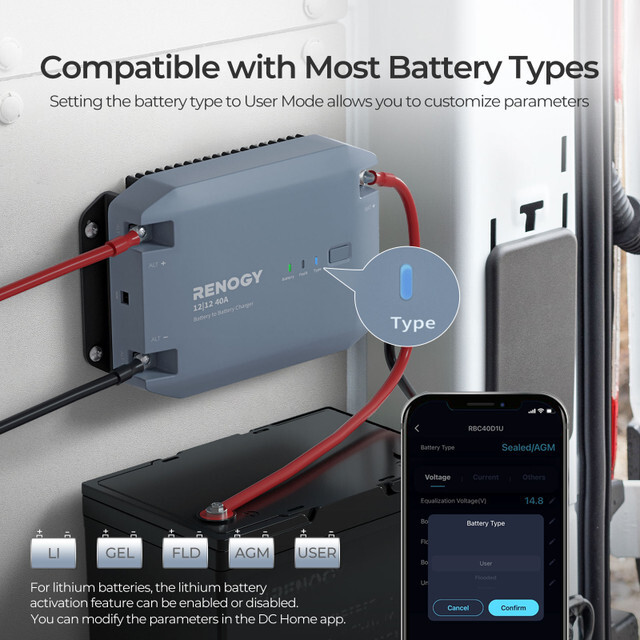

Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User
Input Fuse Rating: 60A
Output Fuse Rating: 50A
Charging Efficiency: 94%
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: <15mA
PACKAGE INCLUDES
The First Option: battery charger x1, temperature sensor x1, IGN Signal Wire x1, User Manual x1, Terminal Ring x4
opc:
WARRANTY INFORMATION
Accessories: 2-year material warranty
| SKU | RBC40D1U-AU |
| Brand | Renogy |
