Brand: Renogy

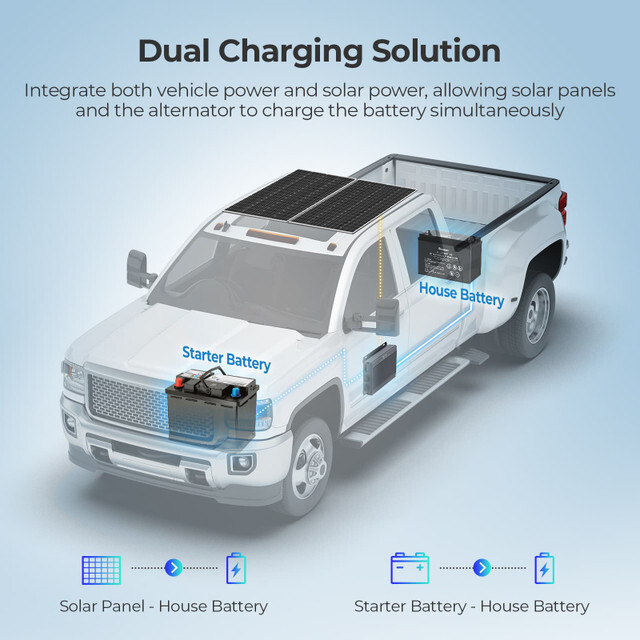

Intelligently combining vehicle and solar power, with automatic mode adjustments based on sunlight intensity.

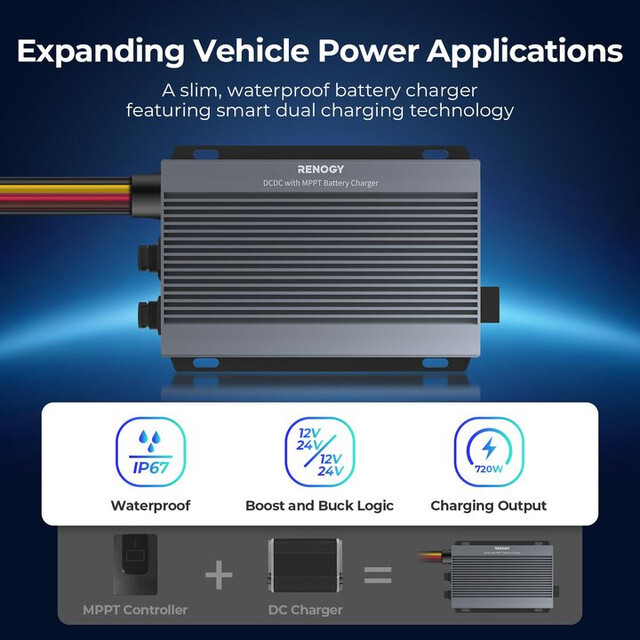

Light and Compact

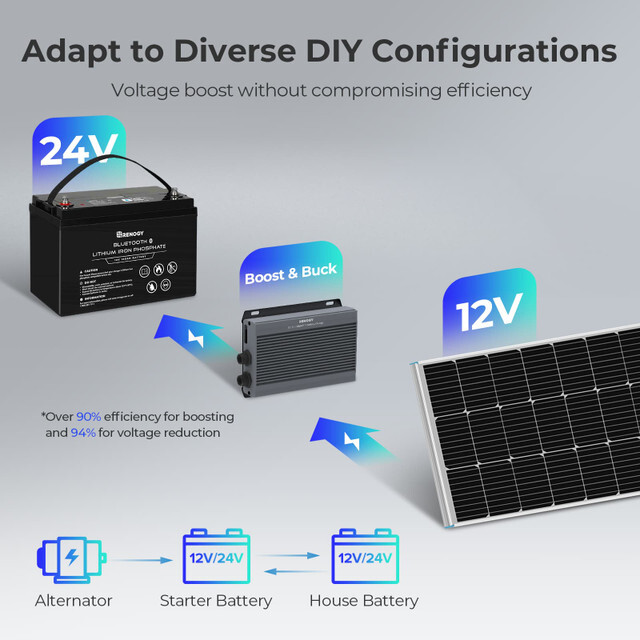

Expanding solar system DIY options for greater versatility.


720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.

Comprehensive electric protections safeguard the charging process.

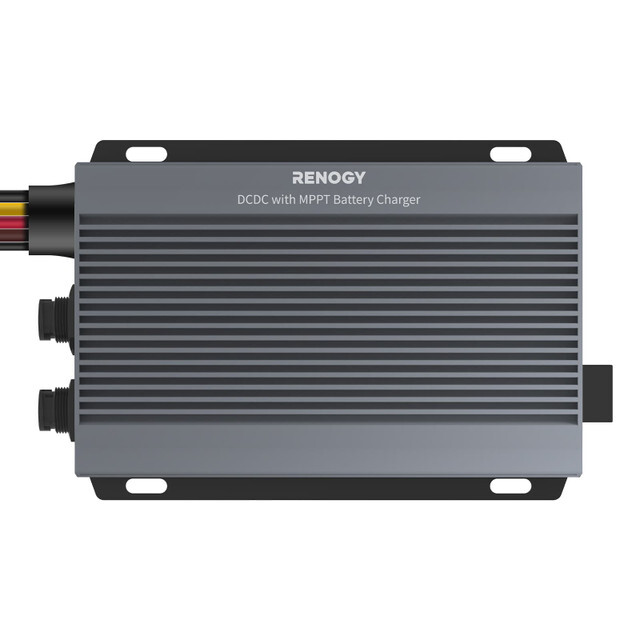

Sheet metal casing gives the charger a robust shell that withstands drops and impacts.

Withstand extreme temperatures from -31℉ to 176℉ and maintain full-load operation even at 131°F.

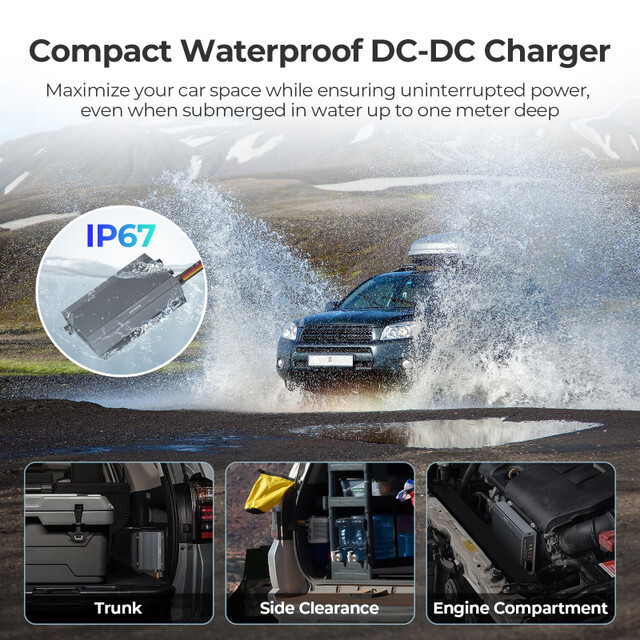

The all-around glue filling design provides complete protection for the charger and ensures a high level of waterproofing.
The battery charger efficiently meets the needs of the house battery while providing a trickle charge to the starter battery, ensuring that the vehicle can always start reliably.
(RBC2125DS-21W-AU)
BASIC INFORMATION
System Voltage: 12V/24V - 12V/24V
Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC
Alternator Input: 9-32 VDC
Maximum Output Current Rating: 50A
Output Power: 720W
Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating: 75A-100A
Output Fuse Rating: 75A-100A
Charging Efficiency: 0.94
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: <100mA
GENERAL DATA
Model: RBC2125DS
Terminal Range: 8AWG-4AWG
Communication Protocol: -40℉ to 176℉/-40℃ to 80℃
Humidity: Modbus ; RV-C
Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight: 4.10 lb / 1.86 kg
Certification: CE;RoHS;FCC Part 15 class B
Warranty: 3-year material warranty
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
| SKU | RBC2125DS-21W-AU |
| Brand | Renogy |
